THC Series

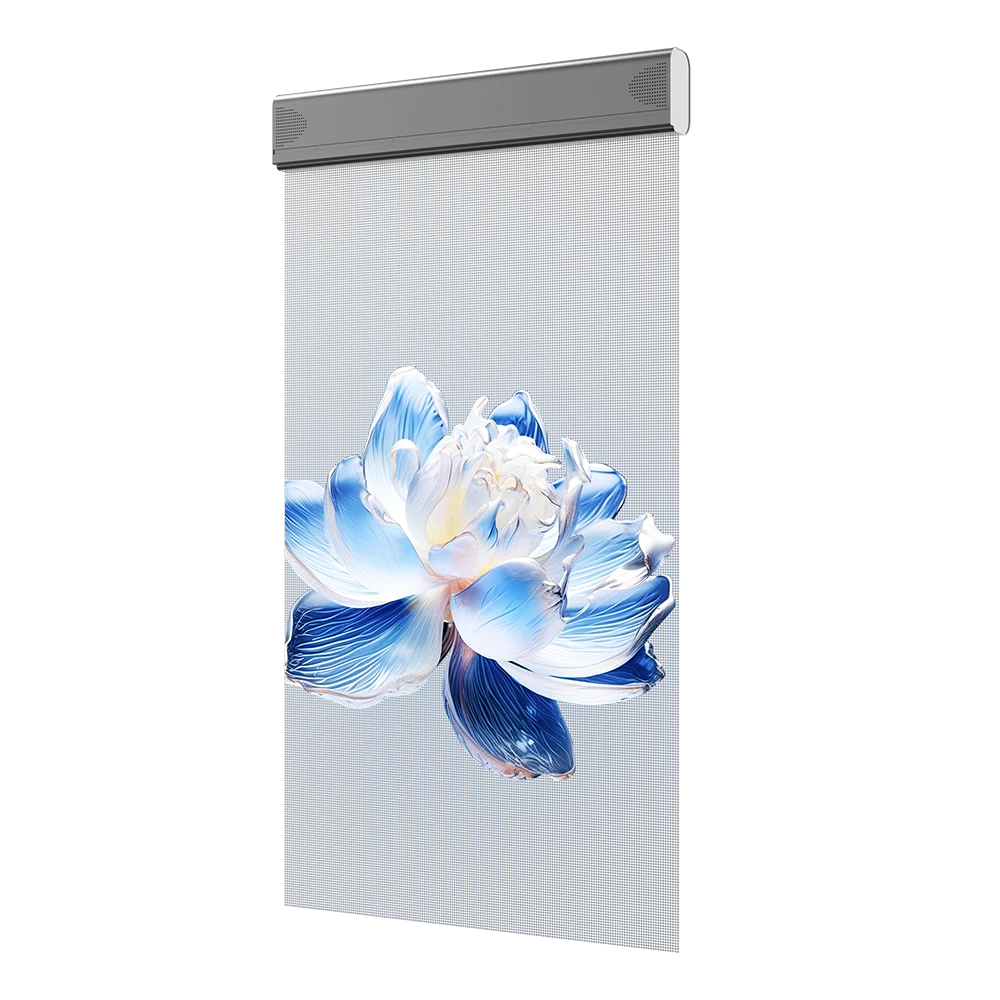

The chip-on-film transparent LED screen represents a significant departure from conventional LED transparent displays. Utilizing chip-on-film (COF) lampless technology, it offers distinct advantages over traditional LED displays, including high energy efficiency, exceptional lightness and thinness, high transparency, straightforward installation, and inherent softness, flexibility, and adjustability.

95% permeability
Ultra-thin, 0.8mm thickness
Low power consumption, saving 70%
Low operating temperature
chip on film lampless, low failure rate
Supports brightness and size customization

Send An Inquiry

Model Number	P3.75	P4	P5	P6	P7.5
Pixel Pitch(mm)	3.75*3.75	4*4	5*5	6.25*6	7.5*7.5
Module Size(mm)	540*240	512*240	720*240	1000*240	1200*240
Module Resolution(px)	144*64	128*60	144*48	160*40	160*32
Density(dots/m2)	71111	62500	40000	26666	17689
Brightness (nit) (customizable)	≥2000	≥2500	≥2000	≥1500	≥1500
Model Number	P8	P10	P12	P20	P30
Pixel Pitch(mm)	8.125*8	10*10	15*15	20*20	30*30
Module Size(mm)	1040*240	1200*240	1200*240	1200*240	1200*240
Module Resolution(px)	128*30	100*24	80*16	60*12	40*8
Density(dots/m2)	15375	10000	4096	2500	1089
Brightness (nit) (customizable)	≥1500	≥1500	≥1500	≥1500	≥1500
Average Power Consumption(W/m²)	50-70
Bending Radius	Mnimum Bending Radius 1M
Maximum Contrast	4000:1
Color Temperature (K)	2000K-9500K (adjustable)
Protection Grade	IP43
Frame Change Frequency	≥60Hz
Refresh Rate (Hz)	≥3840
Input Vltage	AC 110V~240V, 50-60Hz,
Working Time(H)	100,000
Working Temperature(℃)	-10~60
Working Humidity(RH)	10%-90%(No Condensation)
Control Method	synchronous box (computer), asynchronous box ( mobile phone APP, USB)
Installation Method	On glass
