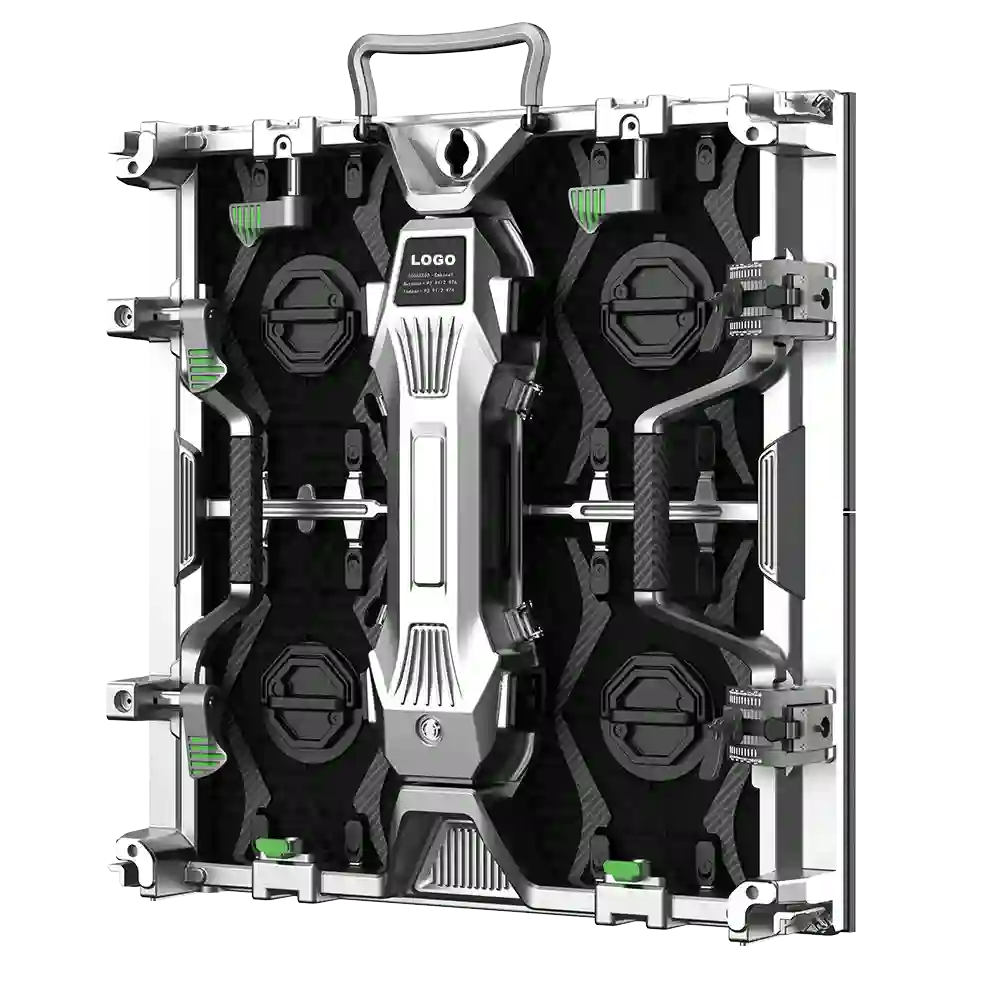

RCS Series
Engineered for rental and stage applications, the RCS Series LED Panels deliver stunning image quality with vibrant colors, high contrast, and high refresh rates. Available in multiple pixel pitches for indoor or outdoor use, the standard 500x1000mm panels are compatible with 500x500mm units. Featuring quick-connect fast locks and protective corner guards, the series ensures rapid, reliable, and damage-resistant setup.
- Lightweight, easy to transport and handle
- Supports curved installations
- Delivers vibrant colors, high contrast, and exceptional refresh rates for stunning image quality
| Specifications (Indoor) | |||||
| Pixel Pitch | 1.9 | 2.6 | 2.9 | 3.91 | |
| LED Type | SMD1515 | SMD1515 | SMD2121 | SMD2121 | |
| Physical Density | 262144 | 147465 | 112896 | 65536 | |
| Module Resolution | 128*128 | 96*96 | 84*84 | 64*64 | |
| Screen Resolution | 256*256 | 192*192 | 168*168 | 128*128 | |
| Scan Method | 1/32 | 1/32 | 1/28 | 1/16 | |
| Module Size(mm) | 250*250*15 | ||||
| Screen Size(mm) | 500*500/1000*70 | ||||
| Gray Scale | 16bit | ||||
| View Angel | 160°/160° | ||||
| Weight(kg) | 6.5/13 | ||||
| Refresh Rate(Hz) | 3840-7680 | ||||
| Brightness(nits) | 800-900 | ||||
| Input Voltage | 110-240V | ||||
| Operating Temperature | -20°C~+60°C | ||||
| Power Consumption(W/m²) | 230-600 | ||||
| IP Level | IP30 | ||||
| Specifications (Outdoor) | |||||
| Pixel Pitch | 2.6 | 2.9 | 3.91 | 4.81 | |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD1921 | |
| Physical Density | 147456 | 112896 | 65536 | 43264 | |
| Module Resolution | 96*96 | 84*84 | 64*64 | 52*52 | |
| Screen Resolution | 192*192 | 168*168 | 128*128 | 104*104 | |
| Scan Method | 1/32 | 1/28 | 1/16 | 1/13 | |
| Module Size(mm) | 250*250*15 | ||||
| Screen Size(mm) | 500*500/1000*70 | ||||
| Bending Arc | 16bit | ||||
| View Angel | 160°/160° | ||||
| Weight(kg) | 6.5 | ||||
| Refresh Rate(Hz) | 3840-7680 | ||||
| Brightness(nits) | 4000-4500 | ||||
| Input Voltage | 110-240V | ||||
| Operating Temperature | -20°C~+60°C | ||||
| Power Consumption(W/m²) | 230-600 | ||||
| IP Level | IP65 | ||||
RCS Series Specification
