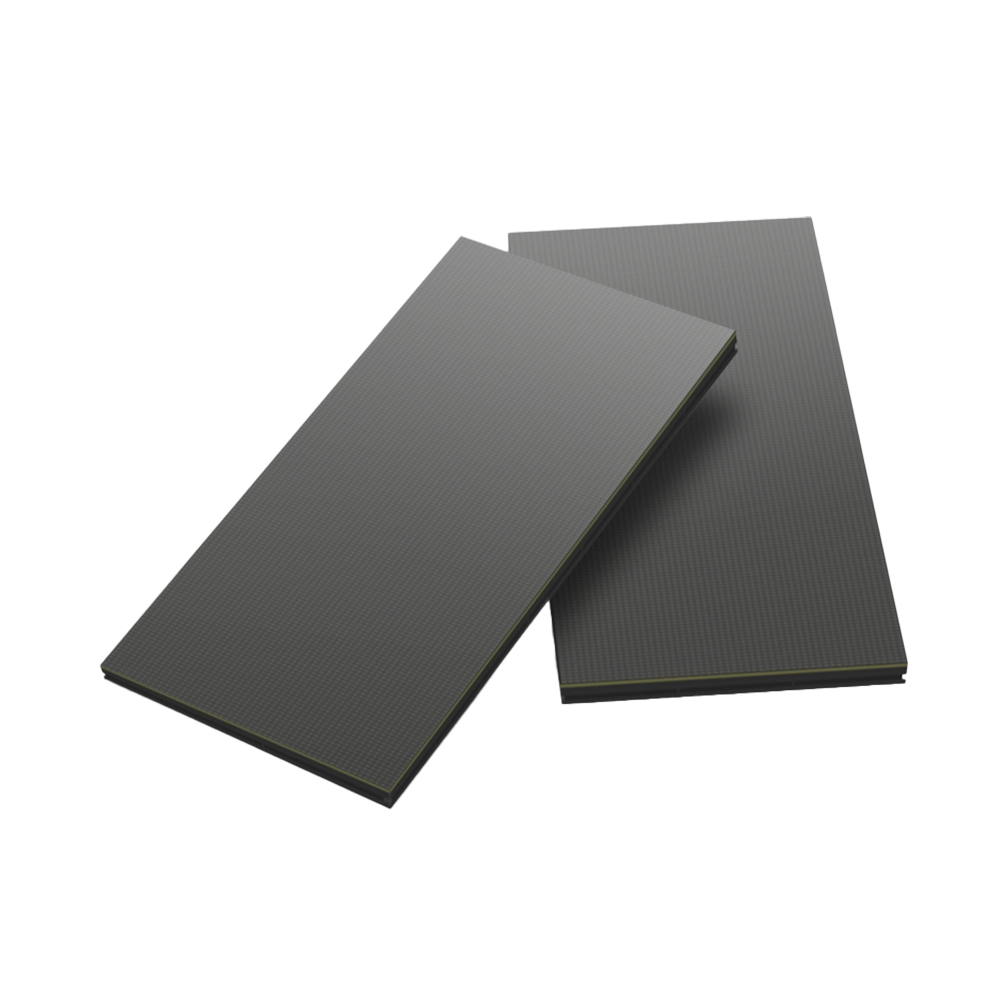

Flexible LED Module

Senlar flexible LED module integrates cutting-edge engineering with adaptive design principles. Its unique pliability enables seamless application across circular columns, architectural pillars, and unconventional geometric forms, supporting curvature radii down to 120mm for precision shaping.

Specifications（320*160）

Pixel Pitch

1.25

1.53

1.86

2.5

3.076

LED Type

SMD1010

SMD1212

SMD1515

SMD2020

Module Resolution

256*160

208*104

172*86

160*80

128*64

104*52

80*40

64*32

Density(dots/m2)

640000

422500

288906

250000

160000

105625

62500

40000

Scan Method

1/64

1/52

1/43

1/40

1/32

‘1/26

‘1/20

‘1/16

Module Size(mm)

320*160

Module Weight(kg)

0.3

Brightness (nit)

650-700

Color Temperature (K)

3000-10000K

Viewing Angle

160°/160°

Contrast Ratio

>10000:1

Power Consumption
(W/m²)

150-450

Refresh Rate (Hz)

3840-7680

Gray Level (bit)

IP Level

IP30

Specifications（240*120）
Pixel Pitch	1.25	1.579	1.875	2	2.5	3	4
LED Type	SMD1010	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020	SMD2020
Module Resolution	192*96	152*76	128*64	120*64	96*48	80*40	60*30
Density(dots/m2)	640000	401082	284440	250000	160000	111111	62500
Scan Method	1/64	1/52	1/43	1/40	1/32	‘1/26	‘1/20
Module Size(mm)	240*120
Brightness (nit)	650-700
Color Temperature (K)	3000-10000K
Viewing Angle	160°/160°
Contrast Ratio	>10000:1
Power Consumption (W/m²)	150-450
Refresh Rate (Hz)	3840-7680
Gray Level (bit)	16
IP Level	IP30

Specifications（256*128）
Pixel Pitch	2	4
LED Type	SMD1515	SMD2020
Module Resolution	128*64	64*32
Density(dots/m2)	250000	62500
Scan Method	‘1/32	‘1/16
Module Size(mm)	256*128
Brightness (nit)	650-700
Color Temperature (K)	3000-10000K
Viewing Angle	160°/160°
Contrast Ratio	>10000:1
Power Consumption (W/m²)	150-450
Refresh Rate (Hz)	3840-7680
Gray Level (bit)	16
IP Level	IP30
